Combined filler for bottles and cans

Filling technology that grows with you

Our multifunctional filling systems - the ideal solution for bottle and can filling. With just one machine, two different containers can be filled, making their production more flexible and cost-effective.

Our main focus was on space saving and easy operation. The machine fits perfectly in small footprints without sacrificing performance. The intuitive user interface allows for effortless control and monitoring of the technology.

The system impresses with durable materials and robust construction to withstand the toughest conditions. The easy accessibility of the components facilitates cleaning and ensures hygienic standards.

Today bottles,
tomorrow we can.

Long-tube bottle filler (1 - 6 filling heads)

Our bottle filling machines has been specially developed for the needs of small and medium-sized breweries. It is modularly expandable and can be equipped with 1 to 6 filling heads depending on requirements. This allows it to flexibly adapt to your production size and enables you to fill efficiently.

The compact and flexible design of our filling system allows for space-saving integration into your brewery. It can adapt to small spaces without compromising on performance. With our system, you have the opportunity to optimize your production area and achieve high filling capacities at the same time.

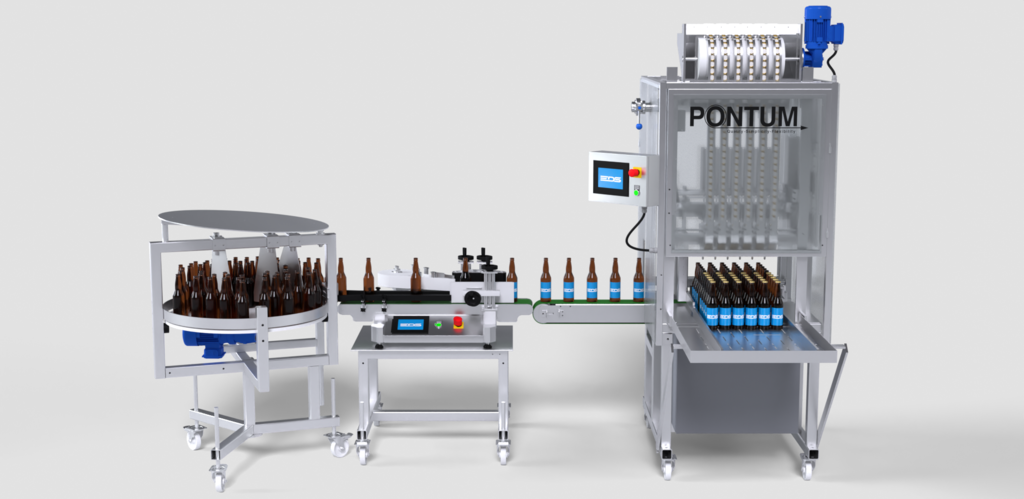

Compact long tube bottle filler FK1-6 from Pontum with 6 filling lines and labeler

Technical Specifications

Filling tubes: 2 (FK1-2) or 6 (FK1-6) - expandable later
Capacity: Up to 1500 bottles per hour (with 6 filling heads)
Bottle sizes: Diameter: 60–85 mm | Height: 180–300 mm (or smaller with special adaptation)
Capsule size: 26 mm
Oxygen management: Integrated CO2 flushing for minimal oxygen intake (4 to 35 ppb after filling)
Foam control: Adjustable back pressure (0–2.5 bar) and filling speed for optimal results
Material: Stainless steel (EN 1.4301), FDA-compliant hoses and valves
Cleaning: Automatic cleaning program via the HMI control
Dimensions: 1460 x 1860 x 2300 mm

Compressed air:

approx. 500l/min, 6 bar +-0.3 bar

Electrical connection: 230/240V 10A
CO2: min 2.5 bar, thread 1/8” or 1/4”
Product inflow: via hose from the pressure tank (approx. 1-2 bar)

Benefits of Pontum FK1

Expandable
Start with 2 filling heads and expand to up to 6 filling heads as needed to keep up with your growth.
Precise control
The HMI control (10" touchscreen) allows easy adjustment of all important parameters such as filling speed and CO2 dosing.
Minimal oxygen input
Thanks to CO2 flushing and 'Cap on Foam' technology, the oxygen input remains at an absolute minimum.
Flexibility
The FK1 can handle various bottle sizes and shapes, as long as the bottom part of the bottle is cylindrical.
Easy Cleaning
The automatic cleaning program ensures quick and easy maintenance of the machine.

Combi filler (Bottle & Can)

Discover the versatility of our combi fillers - the perfect solution for bottle and can filling in a single machine!

Our combi fillers allow you to switch between bottle and can filling with short changeover times. With just a few simple steps, you can switch between the two filling options, saving you valuable time and costs.

Whether you want to fill bottles or cans, our combi filler is perfectly suited for both containers. Rely on reliable technology and smooth filling - now in a single machine.

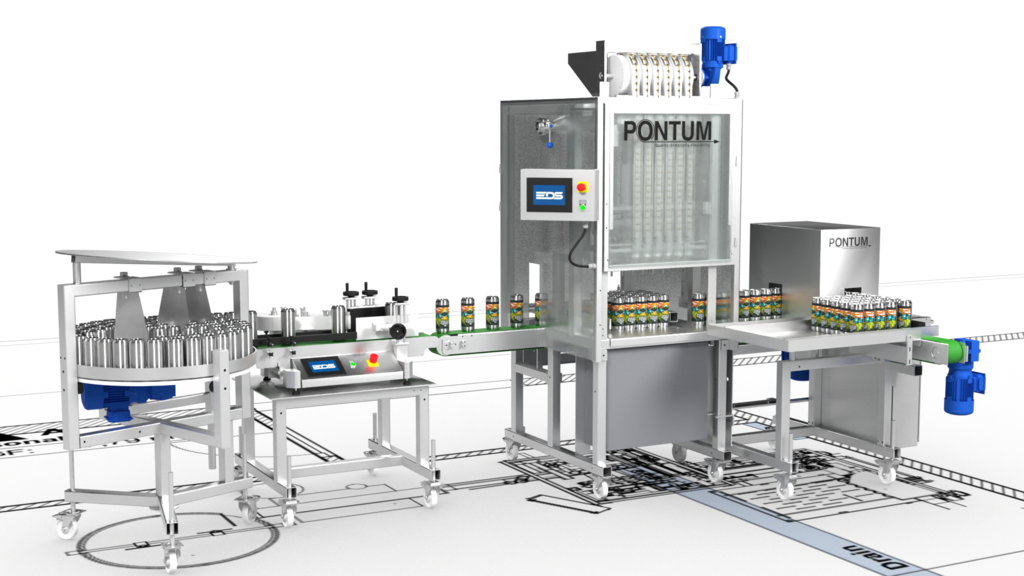

Compact Beer Can Filling Plant CU1 from Pontum with Labeller and Seamer

Would you like to learn more about EDS brewing systems? Contact us for an initial consultation or request a non-binding offer directly!
